小额支付接入指引
简介
该 Codelabs 将帮助开发者完成小游戏小额支付功能的接入,帮助开发者降低支付门槛,撬动账户有钻石余额用户支付能力,提升付费破冰效率。
能力介绍
「小额支付」是一种付费点设计和定价策略,能够通过降低支付门槛,撬动账户有钻石余额用户支付能力,提升付费破冰效率,对扩大游戏付费用户规模,提升游戏全生命周期内购GMV具有重要作用。
在实际应用中,小额支付大多与游戏原有的激励广告点位共同展示,用户可自选观看广告获得奖励,也可通过使用小额钻石跳过广告获得奖励,同时平台也支持开发者将小额支付与激励广告解耦,单独设计小额支付点位。
目标

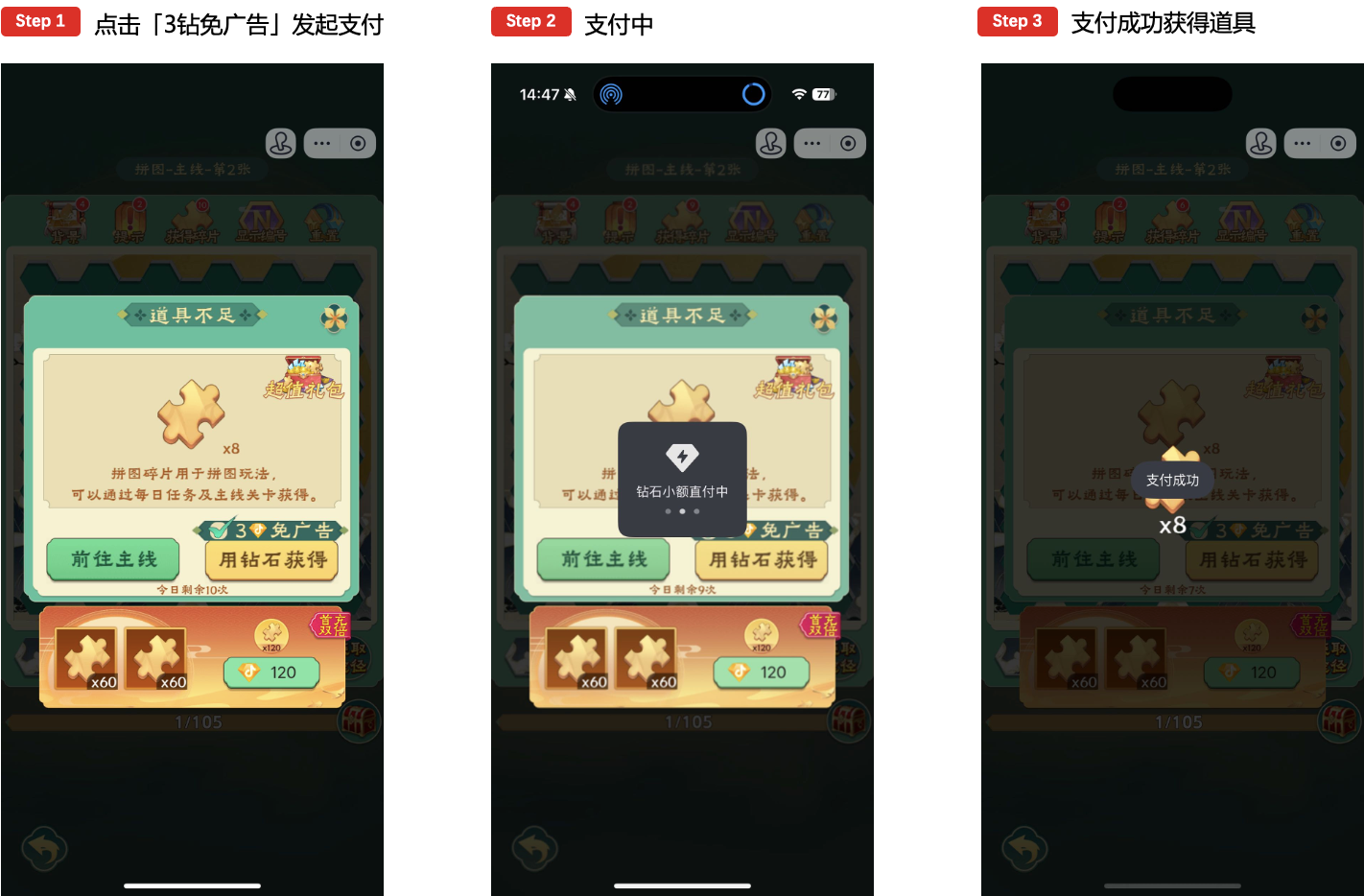

线上小额支付示例:
相关接口
名称 | 类型 | 描述 |
JSAPI | 安卓发起支付JSAPI | |
JSAPI | iOS发起支付JSAPI |
说明:
- •由于小额支付依托的道具直购能力需在基础库版本3.47.0及以上可用,需使用
canIUse
来判断是否支持,其中安卓为tt.canIUse('requestGamePayment.object.goodType')
iOS为tt.canIUse('openAwemeCustomerService.object.goodType')
,处理后线上表现为基础库版本大于3.47.0可见小额支付,小于3.47.0不可见小额支付。- •若游戏为Unity引擎,需额外注意以下几点:
- ◦接口使用:TT.RequestGamePayment(安卓)和TT.openAwemeCustomerService(iOS)
- ◦BGDT升级TTSDK至6.0.8版本,若接入还是StarkSDK 6.0.0以下版本,可以参考旧版StarkSdk API迁移TTSDK API说明文档_小游戏_抖音开放平台
- ◦接入判断条件CanIUse为
CanIUse.RequestGamePaymentParams.GoodType
前提条件
- •ios端使用前请确认参考钻石兑换功能完成钻石支付能力接入
学习内容
- •小额支付及其核心优势
- •如何设计小额支付
- •如何接入小额支付
设计小额支付
参考文档小额支付--快速入门
接入小额支付
流程介绍
小额支付使用了道具直购能力,支持在游戏内直接使用钻石/现金兑换明确的游戏道具/权益直购的场景,无需进行游戏币转换。

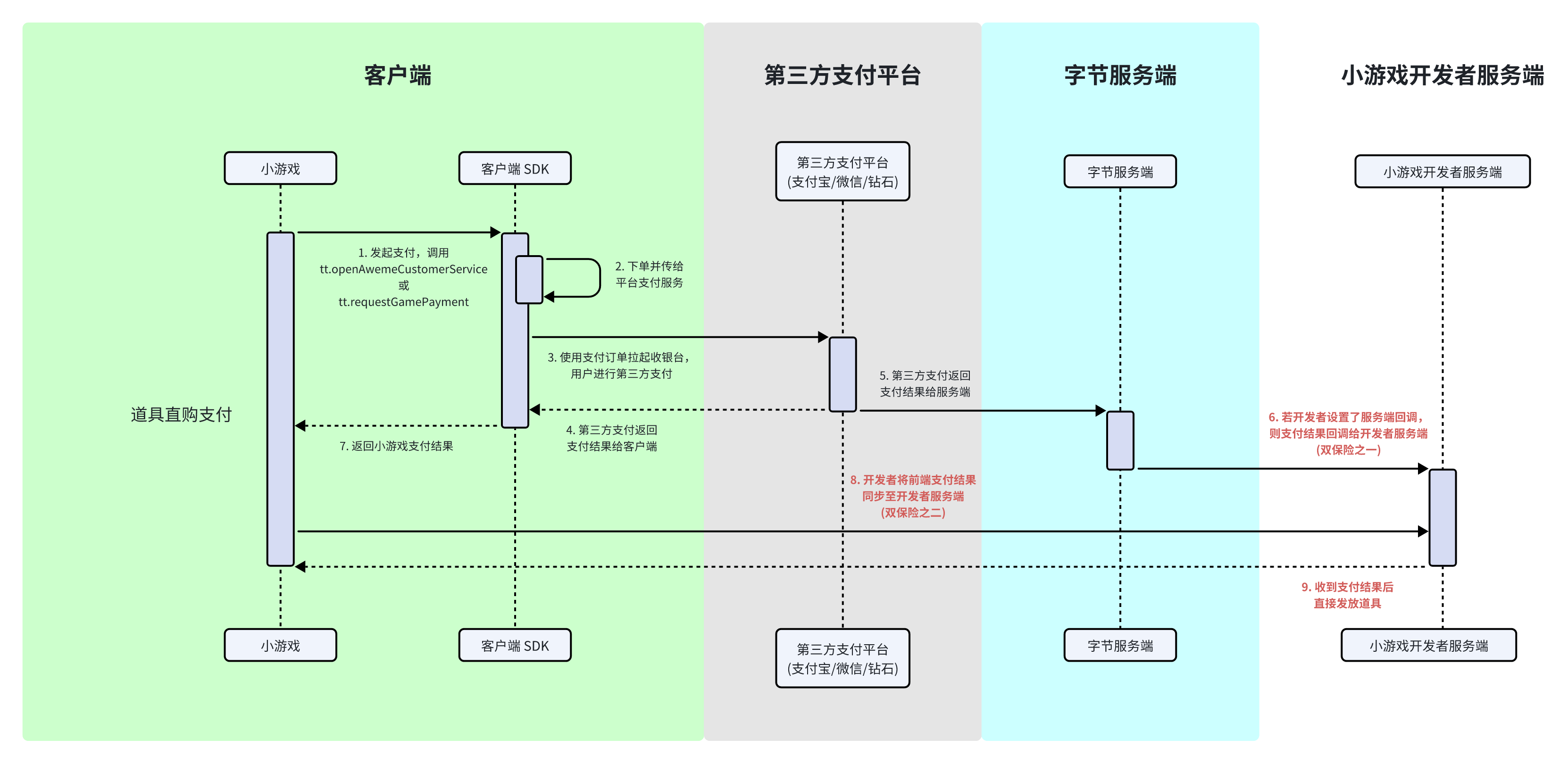

接入流程
接入步骤如下:
- 1.小游戏前端调用 tt.requestGamePayment(Android) / tt.openAwemeCustomerService(ios) 接口,生成小额支付订单,发起支付流程。
参数设置:
属性名 | 类型 | 必填 | 差异化说明 | 最低支持基础库版本 |
goodType | number | 是 | 本参数传2,同时 buyQuantity 字段不传 | 3.47.0 |
orderAmount | number | 是 | 使用小额支付功能时,代表道具现金价格,单位为【分】,如价格为1钻,则回传10 | 3.47.0 |
goodName | string | 否 | 道具名称,长度限制小于等于10个字符,用于区分道具类型,非必填 | 3.47.0 |
普通小游戏代码示例如下:
if (tt.canIUse('requestGamePayment.object.goodType')) { // 道具直购 tt.requestGamePayment({ goodType: 2, orderAmount: 10, goodName: "道具名称" currencyType: "CNY", zoneId: "1", customId: "QWERTYUIDFxxxxx", mode: "game", // 支付类型 env: 0, // 支付环境 platform: "android", extraInfo: "extraInfo", // extraInfo为字符串格式,用户自定义额外信息,支付结果回调信息包含此字段,基础库版本低于1.55.0没有此字段 success(res) { console.log("调用函数成功"); }, fail(res) { console.log("调用函数失败"); }, complete(res) { console.log("调用完成"); }, }); } else { // 游戏币 tt.requestGamePayment({ mode: "game", // 支付类型 env: 0, // 支付环境 platform: "android", currencyType: "CNY", // 币种:目前仅为 "CNY" buyQuantity: 600, // 购买数量,必须满足:金币数量*金币单价 = 限定价格等级(详见金币限定等级) zoneId: "1", customId: "QWERTYUIDFxxxxx", // 开发者自定义唯一订单号。如不填,支付结果回调将不包含此字段,将导致游戏开发者无法发放游戏道具, 基础库版本低于1.55.0没有此字段 extraInfo: "extraInfo", // extraInfo为字符串格式,用户自定义额外信息,支付结果回调信息包含此字段,基础库版本低于1.55.0没有此字段 success(res) { console.log("调用函数成功"); }, fail(res) { console.log("调用函数失败"); }, complete(res) { console.log("调用完成"); }, }); }
Unity小游戏代码示例如下:
if (!CanIUse.RequestGamePayment) { return; } if (CanIUse.RequestGamePaymentParams.GoodType) { var orderAmount = int.Parse(inputPrice.text); var orderInfoParams = new Dictionary<string, object>(); orderInfoParams["mode"] = "game"; orderInfoParams["env"] = "0"; orderInfoParams["currencyType"] = "CNY"; // 固定值: CNY。币种 orderInfoParams["platform"] = "android"; orderInfoParams["customId"] = (TimeUtils.GetCurrentTimeMs() / 1000).ToString(); orderInfoParams["goodType"] = 2; orderInfoParams["orderAmount"] = orderAmount; orderInfoParams["goodName"] = "测试商品"; TT.RequestGamePayment( orderInfoParams, () => { PrintText("Pay Success " + orderInfoParams["customId"]); }, (errCode, errMsg) => { PrintText("Pay failed - errCode: " + errCode + ", errMsg: " + errMsg, true); } ); } else { var quantity = int.Parse(inputPrice.text); Dictionary<string, object> orderInfoParams = new Dictionary<string, object>(); orderInfoParams["mode"] = "game"; orderInfoParams["env"] = "0"; orderInfoParams["currencyType"] = "CNY"; // 固定值: CNY。币种 orderInfoParams["platform"] = "android"; orderInfoParams["buyQuantity"] = quantity; orderInfoParams["customId"] = (TimeUtils.GetCurrentTimeMs() / 1000).ToString(); TT.RequestGamePayment( orderInfoParams, () => { PrintText("Pay Success " + orderInfoParams["customId"]); }, (errCode, errMsg) => { PrintText("Pay failed - errCode: " + errCode + ", errMsg: " + errMsg, true); } ); }
- 2.获取支付结果,支付结果会发送给小游戏前端和小游戏服务端,开发者可通过以下方式对后续业务进行处理。
- a.前端回调:小游戏可通过 tt.requestGamePayment / tt.openAwemeCustomerService 接口的 success 、fail、complete 参数设置不同支付结果的回调函数
- b.小游戏服务端收到支付成功的服务端回调后,可通过 customId 或 extraInfo 判断是否为小额支付的回调。
总结
恭喜,你已经完成了小额支付接入教程。
你在该教程中了解了:
- •小额支付及其核心优势
- •如何接入小额支付
接下来,你可以将小额支付,应用于游戏内实际场景。
