限时付费礼包接入指引

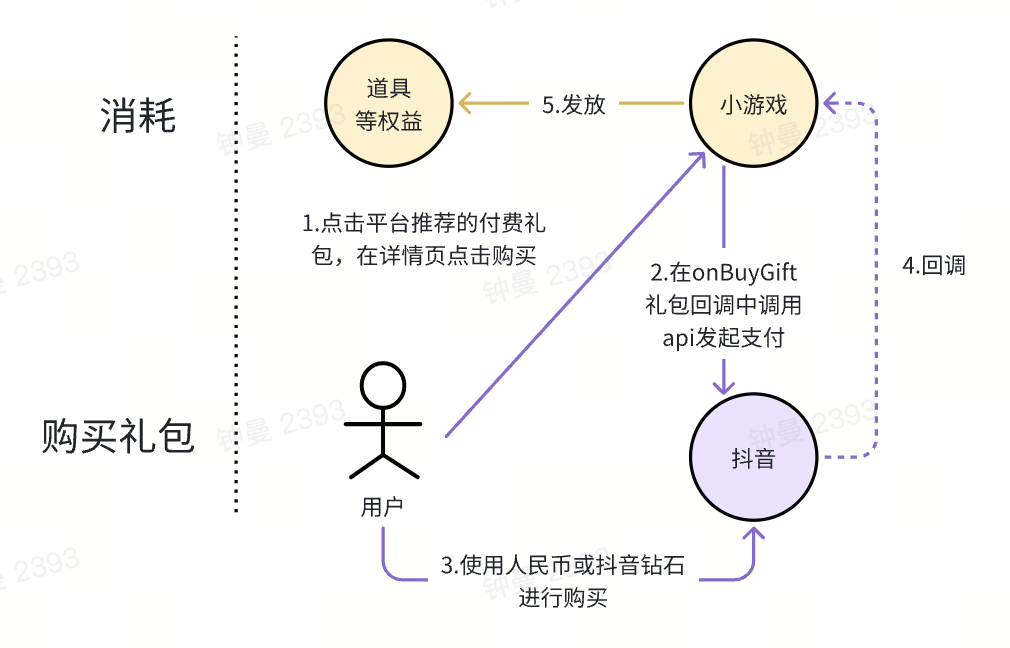

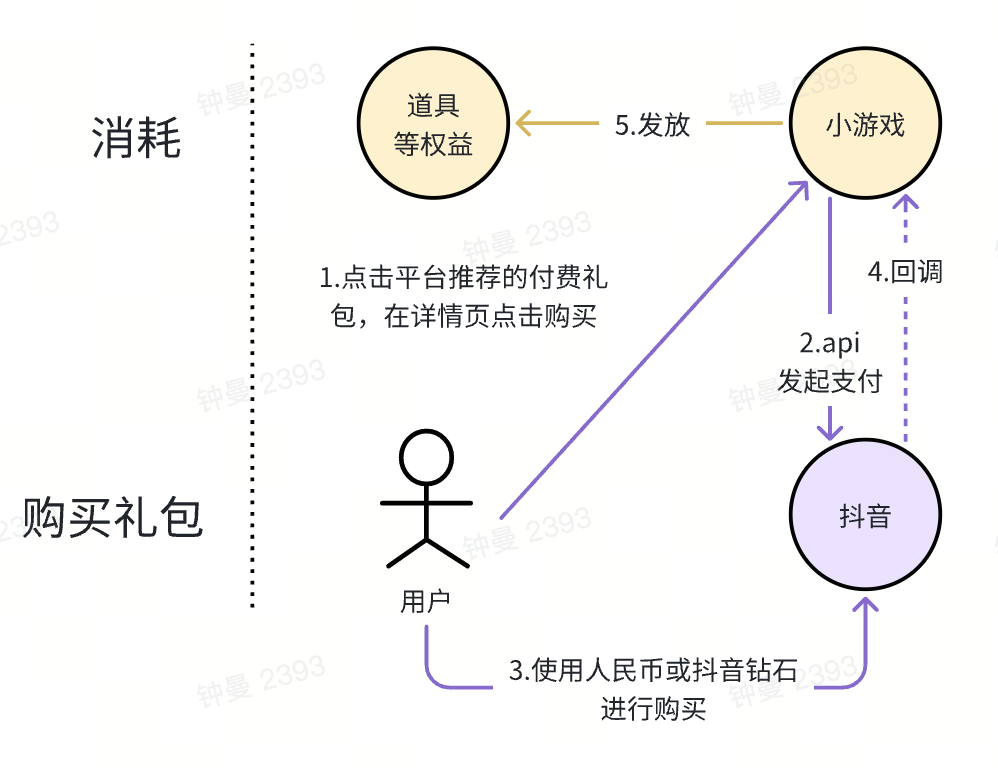

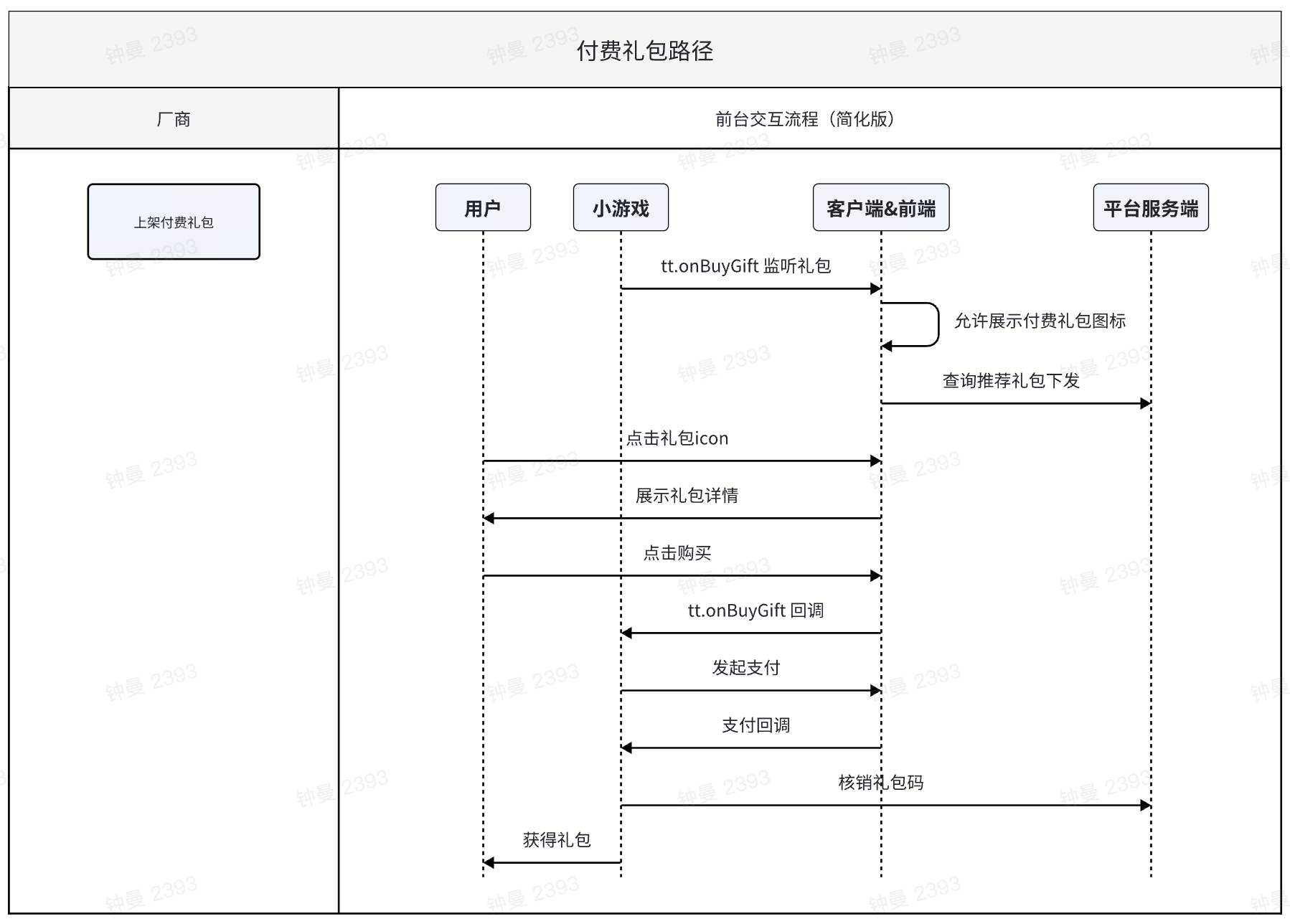

礼包下发路径概览
礼包配置
配置入口:控制台-运营-运营能力-道具&礼包营销-礼包列表-新建礼包-付费礼包
礼包编辑说明:
- •玩法生效期:玩法上架生效时间,审核通过后,若超过起始生效期,玩法将自动上架;生效时长建议3个月以上;
- •礼包名称:对用户展示的礼包名称,命名需具备唯一性;
- •原价:游戏内无折扣最原始的道具价格,可自由定价;
- •现价:用户实 际购买价格,可自由定价,现价必须 ≤ 原价;
- •礼包库存:用户实际可购买的礼包库存,库存为0平台将不再向用户推荐该付费礼包,单次配置上限50,000。
礼包库存及用户购买限制:
- •基础频控:满足命中逻辑的用户,1天最多接收1个付费礼包推荐;
- •单用户购买限制:单用户可能会被推荐同一礼包。礼包推荐优先级:已购买<已推荐<未推荐。
版本要求
适配宿主:抖音、抖音极速版32.4.0及以上版本,其他宿主开放时间待定。
适配游戏:普通小游戏 & Unity小游戏(暂仅支持竖屏)。
购买场景交互
iOS 端

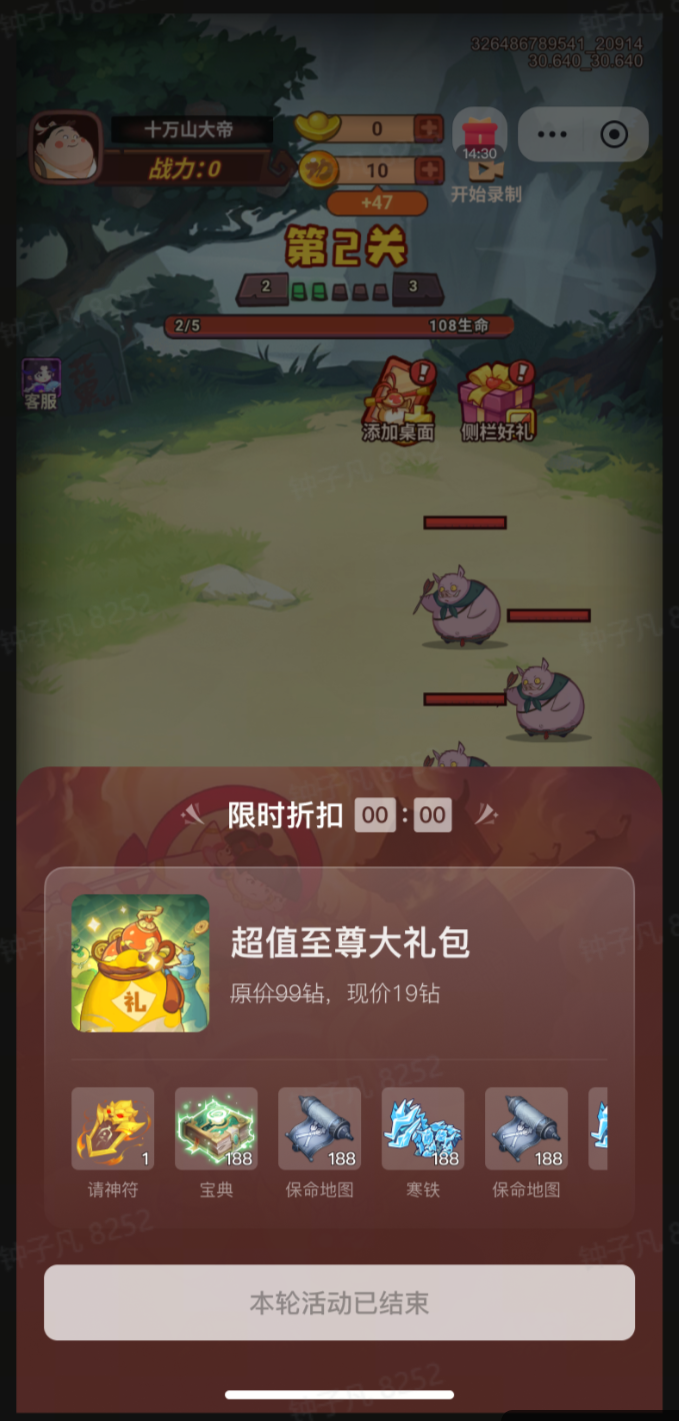

第一步 | 第二步 | 第三步 (场景1:钻石余额充足) | 第四步 (场景2:钻石余额不足) | 第五步 | 礼包未购买,倒计时已结束 | 礼包库存售完 |
| | | | | | |

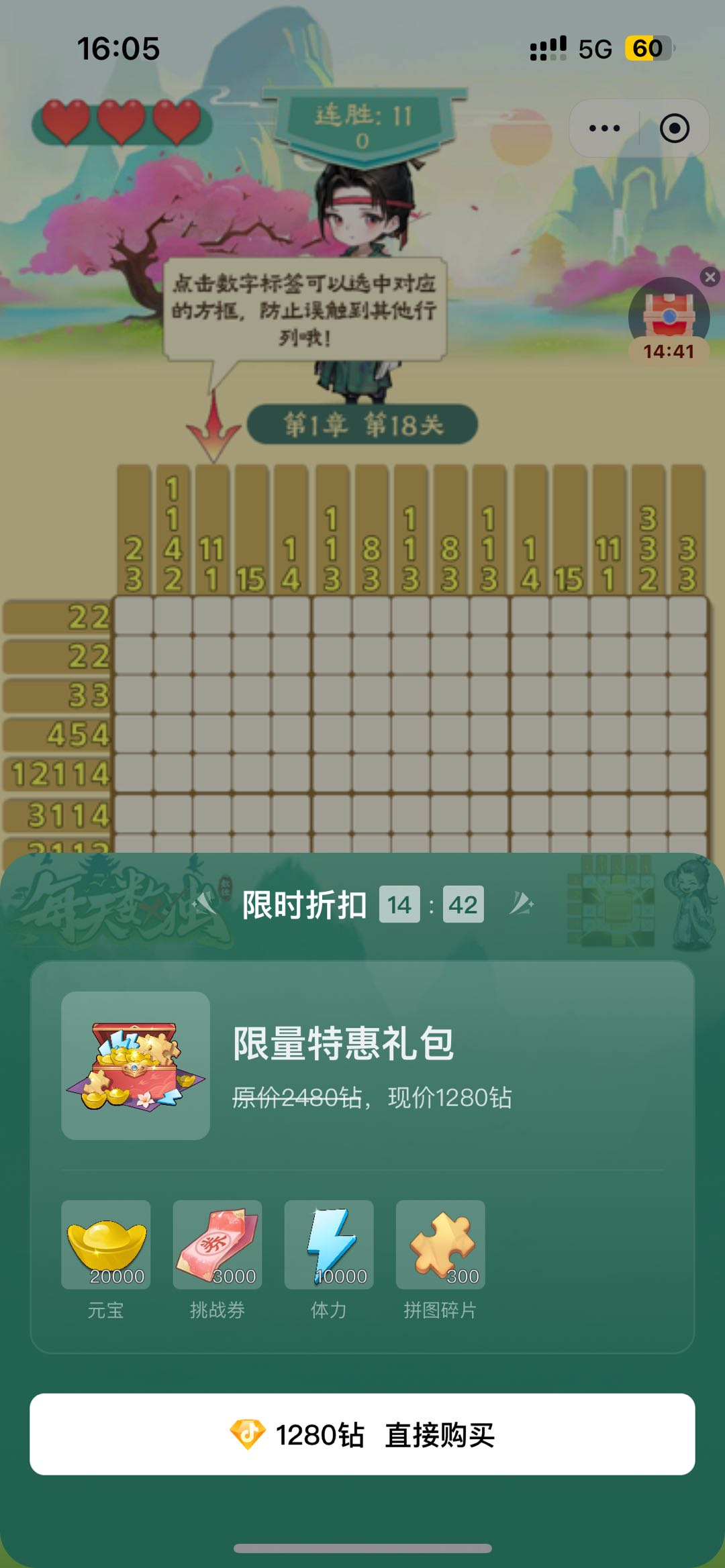

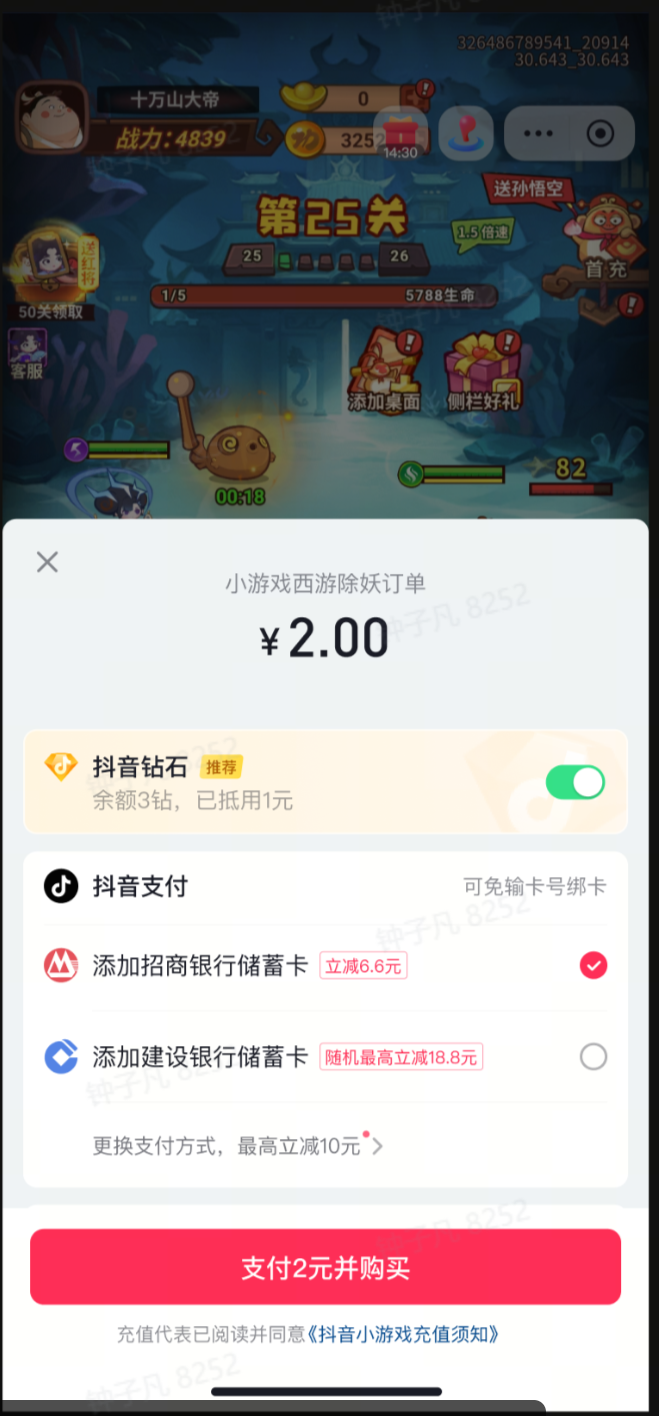

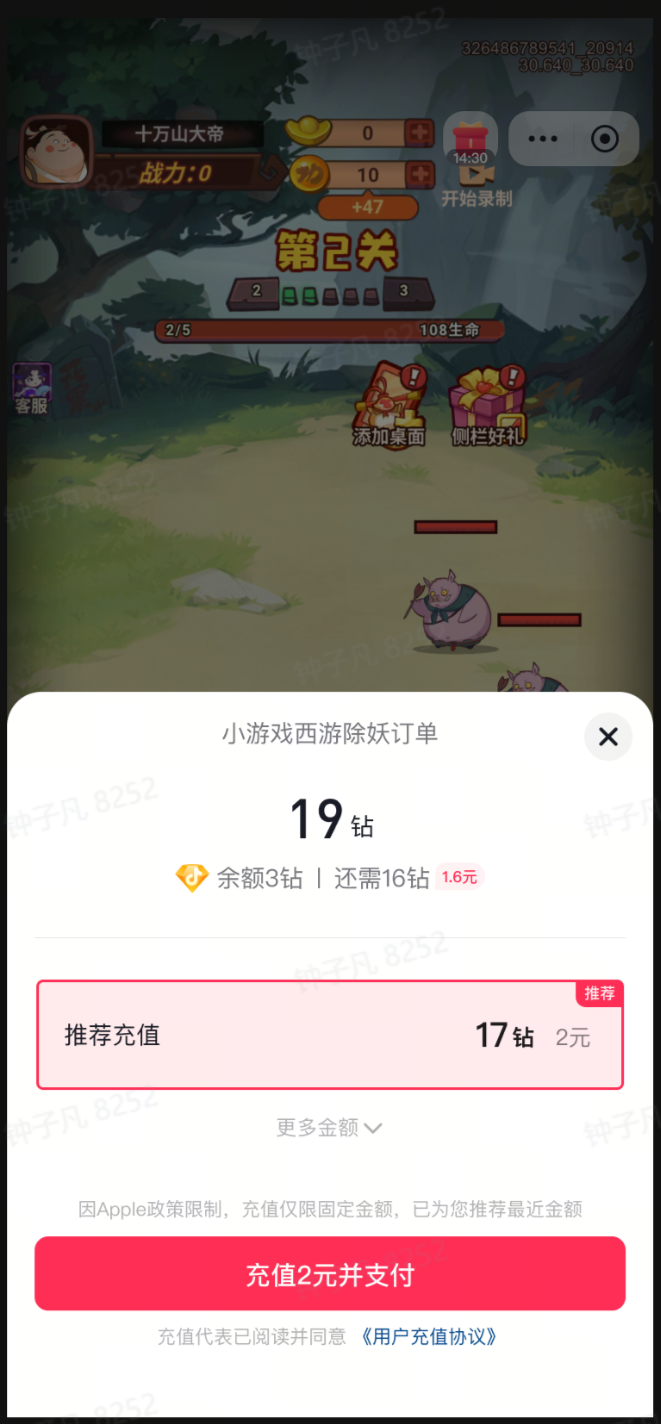

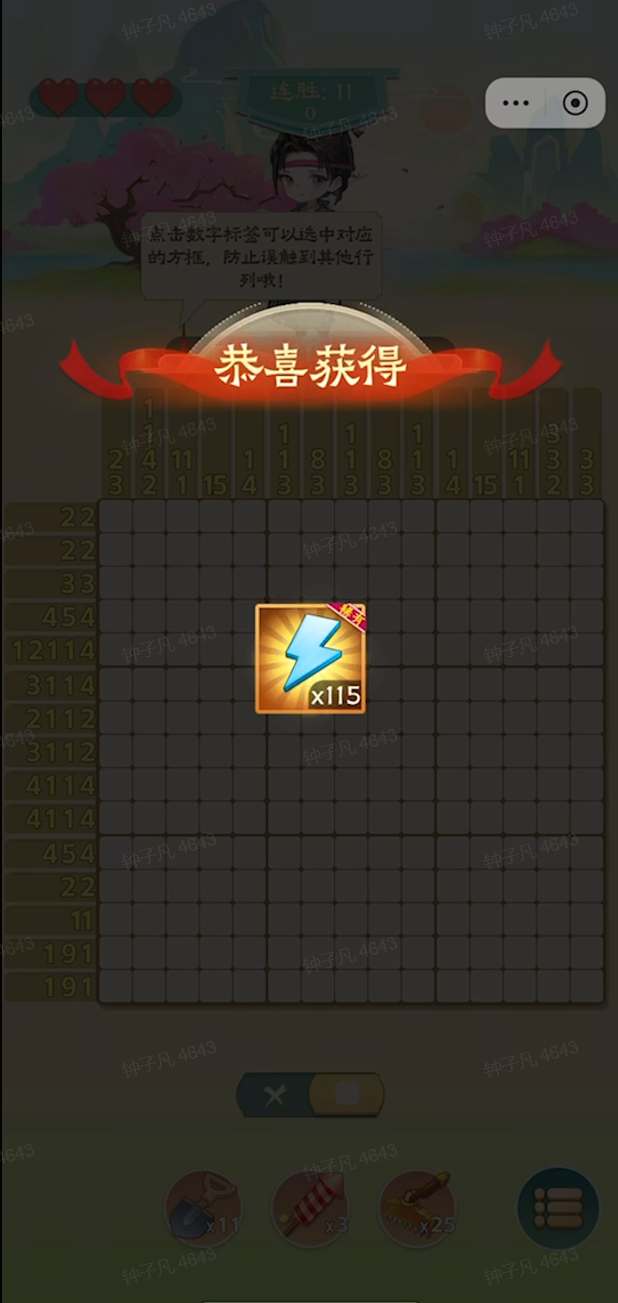

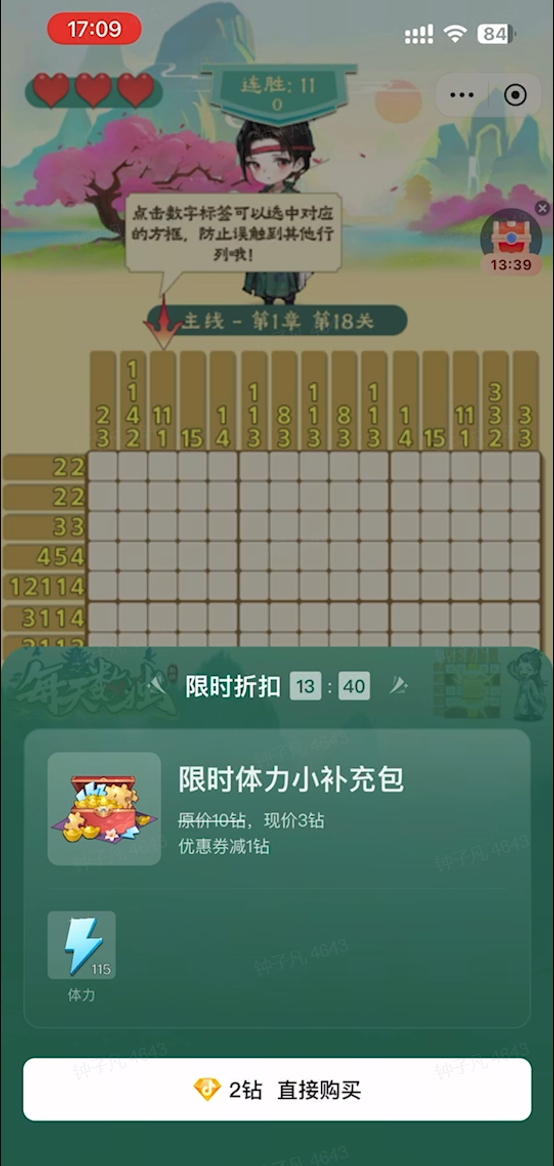

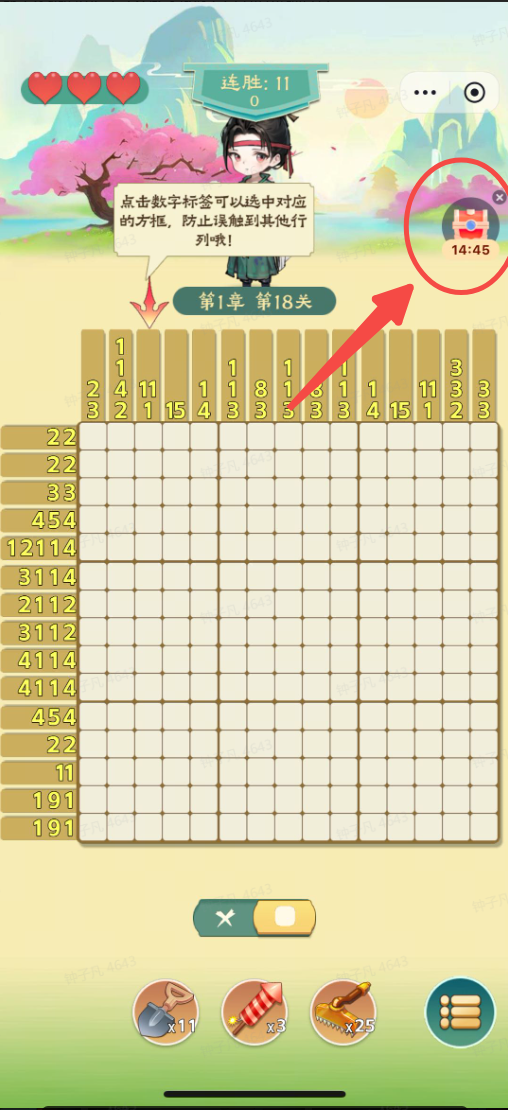

用户被触发后,悬浮球出场将对用户展示,悬浮球倒计时15分钟后关闭 | 点击礼包入口,拉起礼包详情页 | 礼包详情页点击购买,拉起收银台 | 礼包详情页点击购买,钻石不足提示充值并支付 | 完成购买,游戏内入口消失 厂商需做礼包道具展示承接,如图中的“恭喜获得”展示获得道具 | | |
Android端
第一步 | 第二步 | 第三步 (场景1:钻石余额充足) | 第四步 (场景2:钻石余额不足) | 第五步 | 礼包未购买,倒计时已结束 | 礼包库存售完 |
| | | | | | |
体验录屏
抖音32.7.0之前版本体验
抖音32.7.0及以上版本体验
技术接入
普通小游戏和 Unity 小游戏的 API 存在差异,这里分别说明:
普通小游戏
流程
- 1.调用 tt.onBuyGift 监听付费礼包的「点击购买」事件
- 2.在 tt.onBuyGift 的事件回调中调用支付接口 tt.requestGamePayment 和 tt.openAwemeCustomerService 发起支付
注意事项
- 1.只有调用了 tt.onBuyGift,才会按平台策略推送付费礼包入口,否则不展示。
- 2.发起支付请完整透传 tt.onBuyGift 的参数,以保证支付的价格和用户从礼包详情页看到的一致。
- 3.推送付费礼包要求用户已在宿主上登录。
tt.onBuyGift(callback)
监听到用户打开推送的付费礼包并点击购买时触发事件回调。
入参说明
callback
类型 | 默认值 | 必填 | 说明 | 最低支持版本(只填3位版本号) |
Function | 无 | 是 | 回调函数,用户发生了平台推送的付费礼包的购买行为(点击购买按钮)时触发 | 3.51.0 |
返回值
无
callback 回调参数
回调返回参数如下:
属性名 | 类型 | 说明 | 最低支持版本 |
giftId | string | 礼包 id | 3.51.0 |
name | string | 礼包名称 | 3.51.0 |
orderAmount | number | 礼包价格,单位是分 | 3.51.0 |
支付流程的适配
iOS接口使用:tt.OpenAwemeCustomerService安卓接口使用:tt.requestGamePayment
修改参数如下
属性名 | 类型 | 必填 | 差异化说明 | 最低支持版本 |
goodsId | string | 是 | 礼包 id | 3.51.0 |
goodType | number | 是 | 本参数传3,同时 buyQuantity 字段不传 | 3.47.0 |
orderAmount | number | 是 | 代表礼包现金价格,单位为【 分】,支持回传10、20、30, 如礼包价格为0.1元,则回传10 | 3.47.0 |
goodName | string | 否 | 礼包名称,长度限制小于等于10个字符,非必填 | 3.47.0 |
代码示例
使用前先对 tt.onBuyGift 做兼容性判断
if (!tt.canIUse('onBuyGift')) { return; // 不支持则不调用 tt.onBuyGift }
iOS
if (!tt.canIUse('onBuyGift')) { return; // 不支持则不调用 tt.onBuyGift } tt.login({force: true, success() { tt.onBuyGift((param) => { const {giftId, name, orderAmount} = param; tt.openAwemeCustomerService({ zoneId: "1", customId: "QWERTYUIDFxxxxx", // 开发者自定义唯一订单号。如不填,支付结果回调将不包含此字段,将导致游戏开发者无法发放游戏道具, 基础库版本低于1.55.0没有此字段 goodsId: giftId, goodType: 3, orderAmount, goodName: name, extraInfo: `{ userId: "12xxx6", // 用户自定义额外信息,支付结果回调信息包含此字段, 基础库版本低于1.55.0没有此字段 version: "v0.0.0", price: "30", }`, //extraInfo要转成字符串 success(res) { console.log("调用函数成功"); const { pay_time, gift } = res; const { gift_id, // 礼包类型id gift_code, // 用户在获取到礼包兑换码进入游戏后,发起核销兑换码的动作,开发者需要使用本接口校验礼包兑换码的有效性。校验通过后才可以发放对应礼包 status, // init:待使用,finish:已核销,cancel 已取消 } = gift; // 开发者做礼包逻辑处理 }, fail(res) { console.log("调用函数失败"); }, complete(res) { console.log("调用完成"); }, }); }); }});
安卓端
if (!tt.canIUse('onBuyGift')) { return; // 不支持则不调用 tt.onBuyGift } tt.login({force: true, success() { tt.onBuyGift((param) => { const {giftId, name, orderAmount} = param; // 道具直购 tt.requestGamePayment({ goodType: 3, orderAmount, goodsId: giftId, goodName: name, currencyType: "CNY", zoneId: "1", customId: "QWERTYUIDFxxxxx", extraInfo: '123', mode: "game", // 支付类型 env: 0, // 支付环境 platform: "android", extraInfo: '{ userId: "12xxx6", // 用户自定义额外信息,支付结果回调信息包含此字段, 基础库版本低于1.55.0没有此字段 version: "v0.0.0", price: "30", }',//extraInfo要转成字符串 success(res) { console.log("调用函数成功"); const { pay_time, gift } = res; const { gift_id, // 礼包类型id gift_code, // 用户在获取到礼包兑换码进入游戏后,发起核销兑换码的动作,开发者需要使用本接口校验礼包兑换码的有效性。校验通过后才可以发放对应礼包 status, // init:待使用,finish:已核销,cancel 已取消 } = gift; // 开发者做礼包逻辑处理 }, fail(res) { console.log("调用函数失败"); }, complete(res) { console.log("调用完成"); }, }); }); }});
新增错误码
下单 jsapi 新增以下错误码:
错误码 | 说明 | 解决方案 | 示例 |
21002 | 小游戏或平台原因无法下单 | 根据错误提示修复 | “礼包库存不足” |
如果要精确判断礼包不足场景,可以使用if(errMsg.includes("库存不足") && (Number(errCode) === 21002))
支付回调
// 支付回调 msg 中新增以下信息,含义同上 { "appid": "ttbxxxxxxx", "cp_orderno": "QWERTYUIDFxxxxx", "cp_extra": "自定义字段", "amount_cent": 300, "amount_coin": 0, "order_no_channel": "TP2024xxxxxxxx589143224", "currency": "CNY", "gift": { "gift_id": "2278243952424", "gift_code": "PG2378349002", "status": "init" } }
Unity 小游戏
注意事项、支付流程同普通小游戏,以下仅注明和小游戏区别部分(代码部分)
流程
- 1.调用 TT.OnBuyGift 监听付费礼包的「点击购买」事件
- 2.在 TT.OnBuyGift 的事件回调中调用支付接口 TT.RequestGamePayment 或 TT.OpenAwemeCustomerService 发起支付
TT.OnBuyGift(BuyGiftCallback callback)
监听到用户打开推送的付费礼包并点击购买时触发事件回调。
入参说明
callback
类型 | 默认值 | 必填 | 说明 | TTSDK支持版本 |
delegate | 无 | 是 | 回调函数,用户发生了平台推送的付费礼包的购买行为(点击购买按钮)时触发 | 6.1.1 |
返回值
无
callback 回调参数
回调返回参数类型为 BuyGiftResult ,包含属性如下:
属性名 | 类型 | 说明 | TTSDK支持版本 |
GiftId | string | 礼包 id | 6.1.1 |
Name | string | 礼包名称 | 6.1.1 |
OrderAmount | number | 礼包价格,单位是分 | 6.1.1 |
代码示例
使用前先对 TT.OnBuyGift 做兼容性判断
if (!CanIUse.OnBuyGift) { return; // 不支持则不调用 }
iOS
// 本例中省略登录过程 TT.OnBuyGift(result => { var param = new OpenAwemeCustomerServiceParam { GoodType = 3, GoodsId = result.GiftId, GoodName = result.Name, OrderAmount = result.OrderAmount, CustomId = (TimeUtils.GetCurrentTimeMs() / 1000).ToString(), ZoneId = "1", ExtraInfo = "sc diamond pay test extra", Success = successResult => { PrintText($"OpenAwemeCustomerService Success , errMsg -->{successResult.ErrMsg}, " + $"GiftId--> {successResult.Gift?.GiftId} ", $"GiftCode --> {successResult.Gift?.GiftCode}", $"Status --> {successResult.Gift?.Status}" ); }, Fail = failResult => { PrintText($"OpenAwemeCustomerService Fail , errMsg -->{failResult.ErrMsg}, " + $"errCode--> {failResult.ErrorCode} , errorType --> {failResult.ErrorType}"); }, Complete = () => { PrintText("OpenAwemeCustomerService Complete"); } }; TT.OpenAwemeCustomerService(param); });
安卓端
// 本例中省略登录过程 TT.OnBuyGift(result => { var param = new RequestGamePaymentParam{ GoodType = 3, GoodsId = result.GiftId, GoodName = result.Name, OrderAmount = result.OrderAmount, Mode = "game", Env = 0, CurrencyType = "CNY", // 固定值: CNY。币种 Platform = "android", CustomId = (TimeUtils.GetCurrentTimeMs() / 1000).ToString(), Success = successResult => { PrintText($"Pay Success , errMsg -->{successResult.ErrMsg}, " + $"GiftId--> {successResult.Gift?.GiftId} ", $"GiftCode --> {successResult.Gift?.GiftCode}", $"Status --> {successResult.Gift?.Status}" ); }, Fail = failResult => { PrintText($"Pay Fail , errMsg -->{failResult.ErrMsg}, " + $"errCode--> {failResult.ErrorCode} , errorType --> {failResult.ErrorType}"); }, Complete = () => { PrintText("RequestGamePayment Complete"); } }; TT.RequestGamePayment(param); });
礼包核销 OpenAPI
用于小游戏完成道具礼包领取后,开发者核销用户的礼包码,即用户核销券后,将券状态同步到开放平台。
礼包下发测试
控制台-运营-运营能力-立即创建限时付费礼包-创建成功后-查看礼包详情
【礼包测试】按钮-填写UID-点击确定-冷启动抖音进入小游戏。
配置一次只能生效15分钟。
数据披露

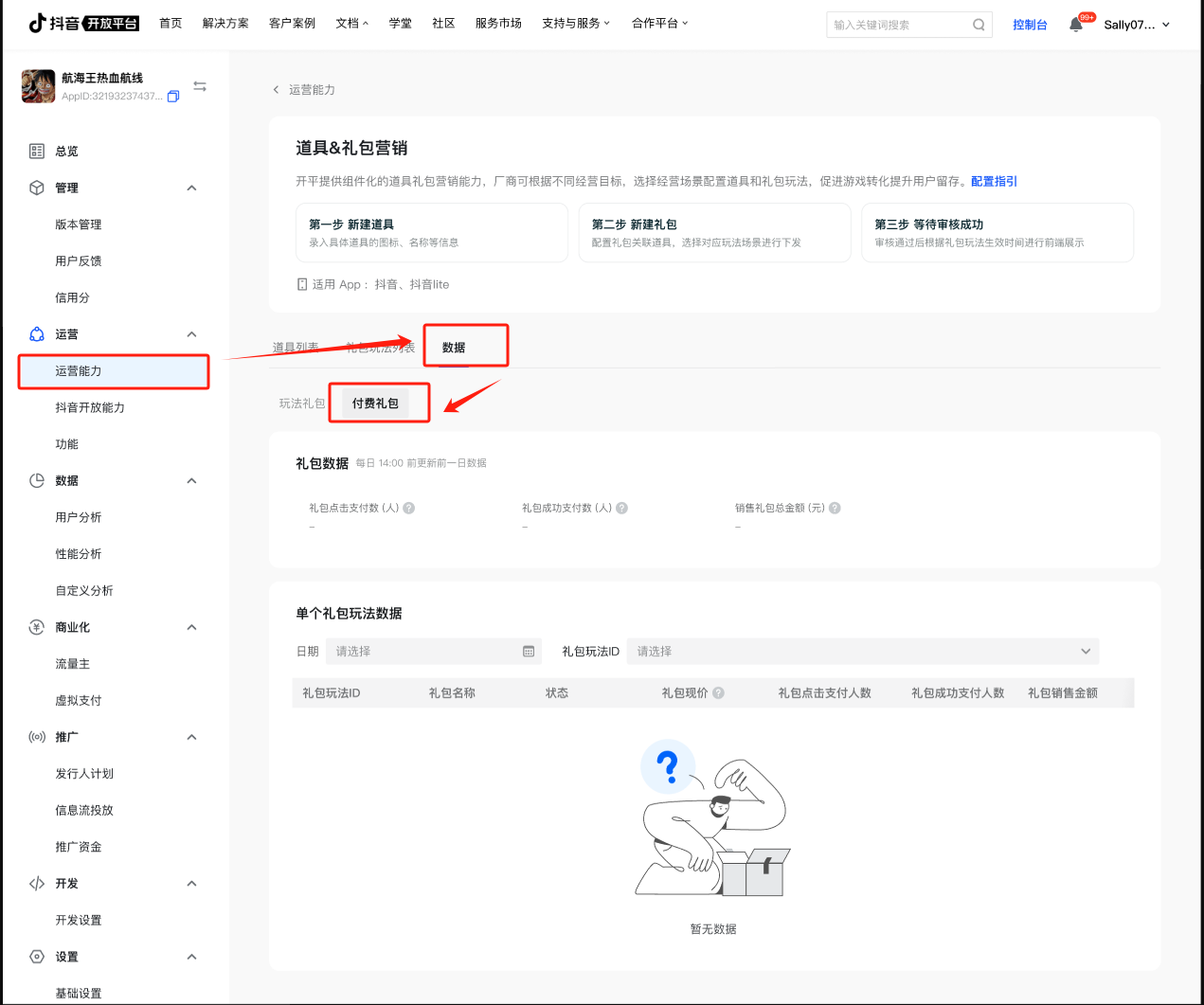

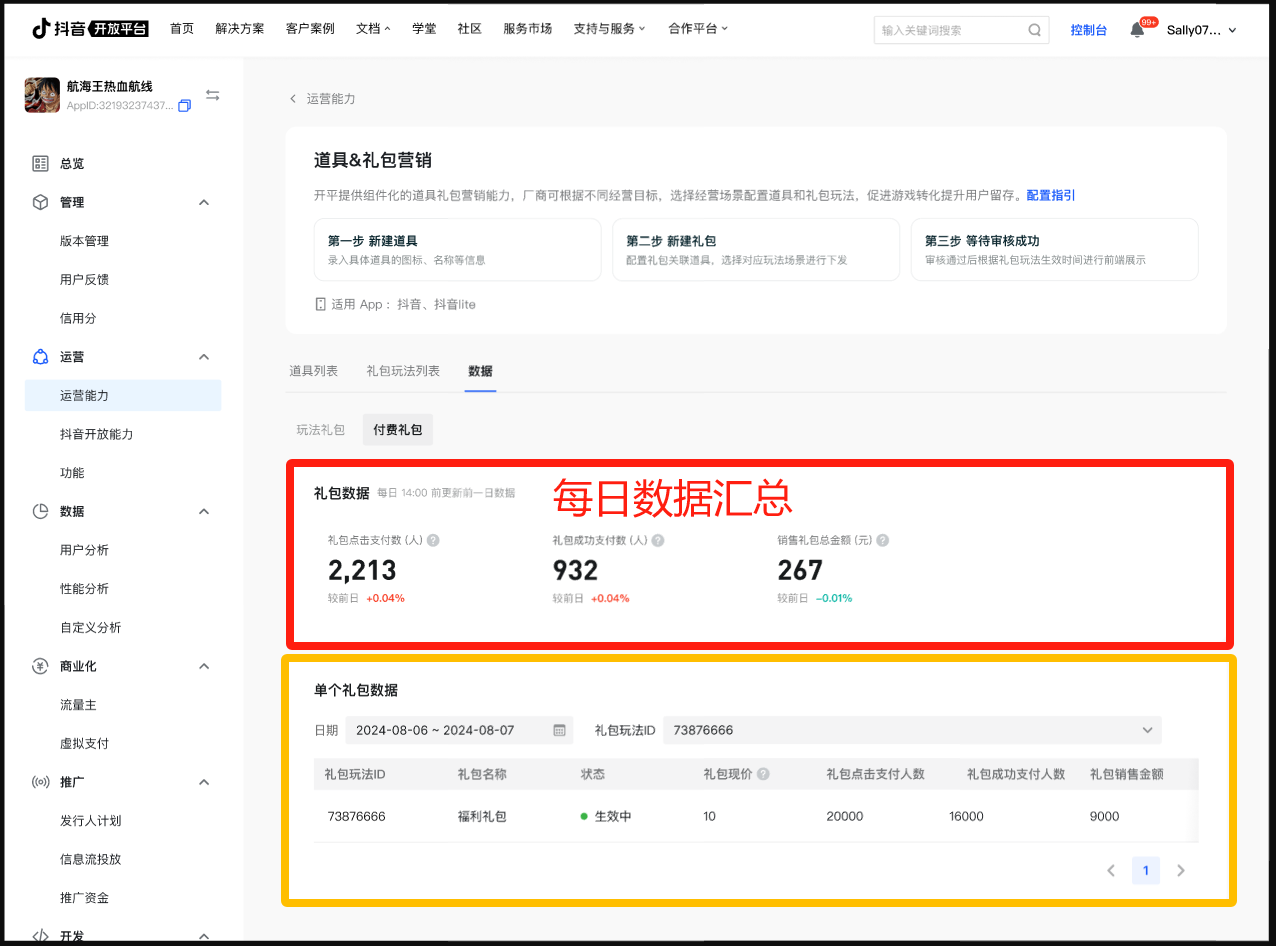

前往小游戏开发者后台--运营--运营能力--道具&礼包营销能力,选择数据Tab页下,选择付费礼包tab即可查看付费礼包售卖数据情况。
付费礼包-无数据 |
