小程序分享

我的收藏

简介

该 Codelabs 将聚焦在如何通过转发链接、图文、分享口令等不同形式分享小程序。

能力介绍

分享是指由用户主动触发，指定小程序落地页，分享至抖音私信或其他端外场景，引导其他用户回流至小程序。

同时支持多种分享方式，例如卡片、短链、图文等，由用户根据喜好选择分享方式。

注：端外场景回流至小程序需经过用户二次确认。

如何设置分享素材

详细内容查看设置分享素材。

目标

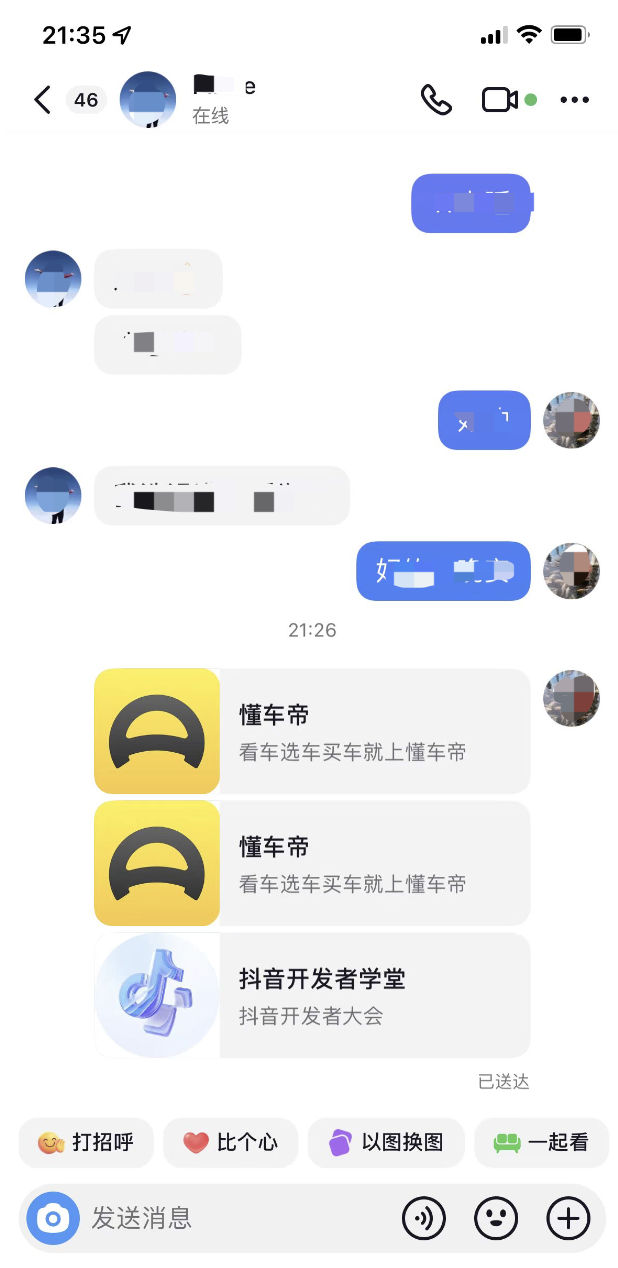

分享到私信：

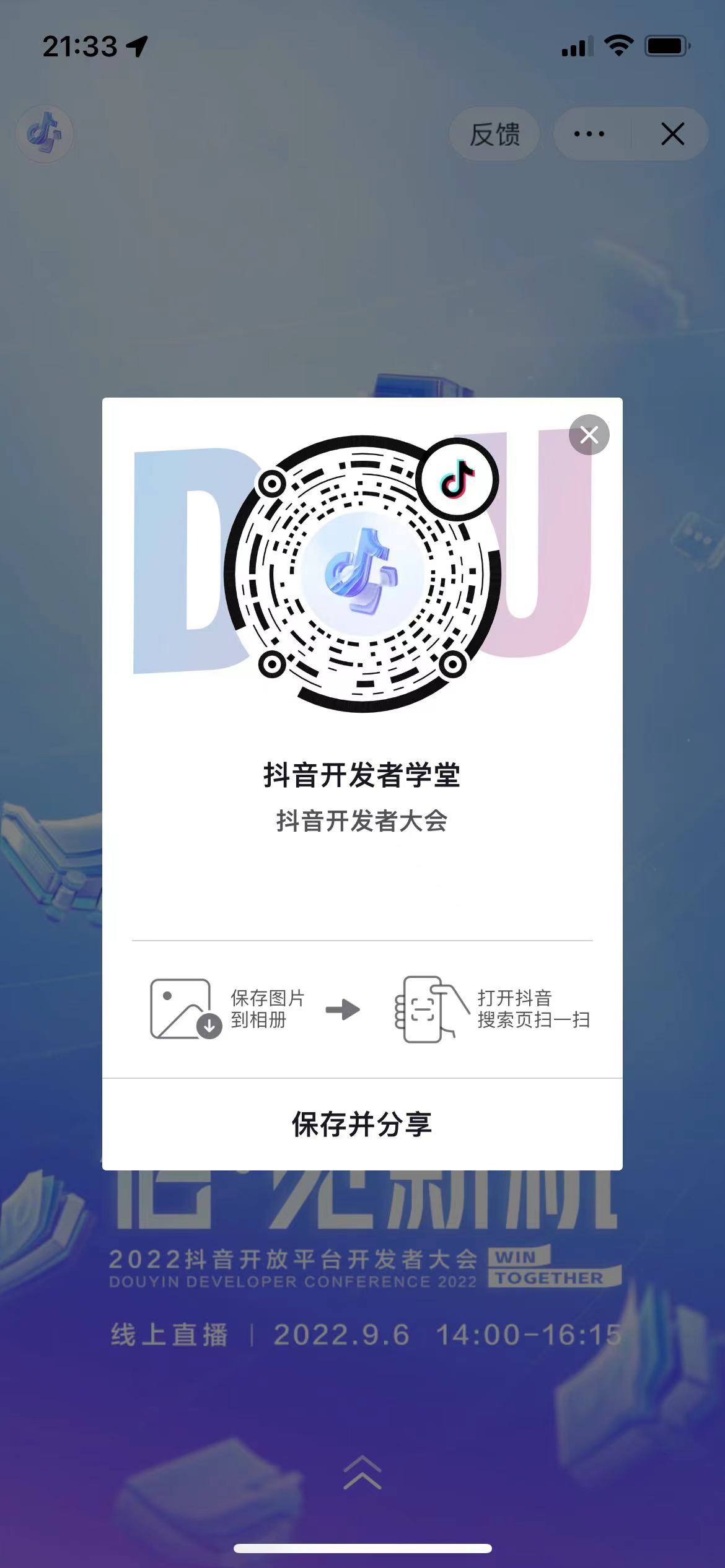

分享到外部渠道：

调用方式

•

button 组件设置 opentype = share

•

Page 定义 onShareAppMessage 方法

前提条件

•

入驻抖音开放平台

•

上线小程序

学习内容

•

如何创建分享模板

•

如何配置分享页面

•

如何获取服务端分享链接

创建分享模板

你需要在抖音开放平台预先创建分享模板，包含需要分享的图片、标题、文案，并提交平台进行审核。

平台审核通过后再使用对应的分享模板 ID 配置到页面转发参数中。

创建分享模板步骤如下：

登录抖音开放平台控制台，进入小程序应用详情页。

在左侧导航栏选择「运营」>「流量配置」，在「流量配置」页面「全部」页签点击「分享设置」。

在「分享设置」页面填写「分享标题」、「分享文案」和「分享图案」，然后点击「提交审核」。

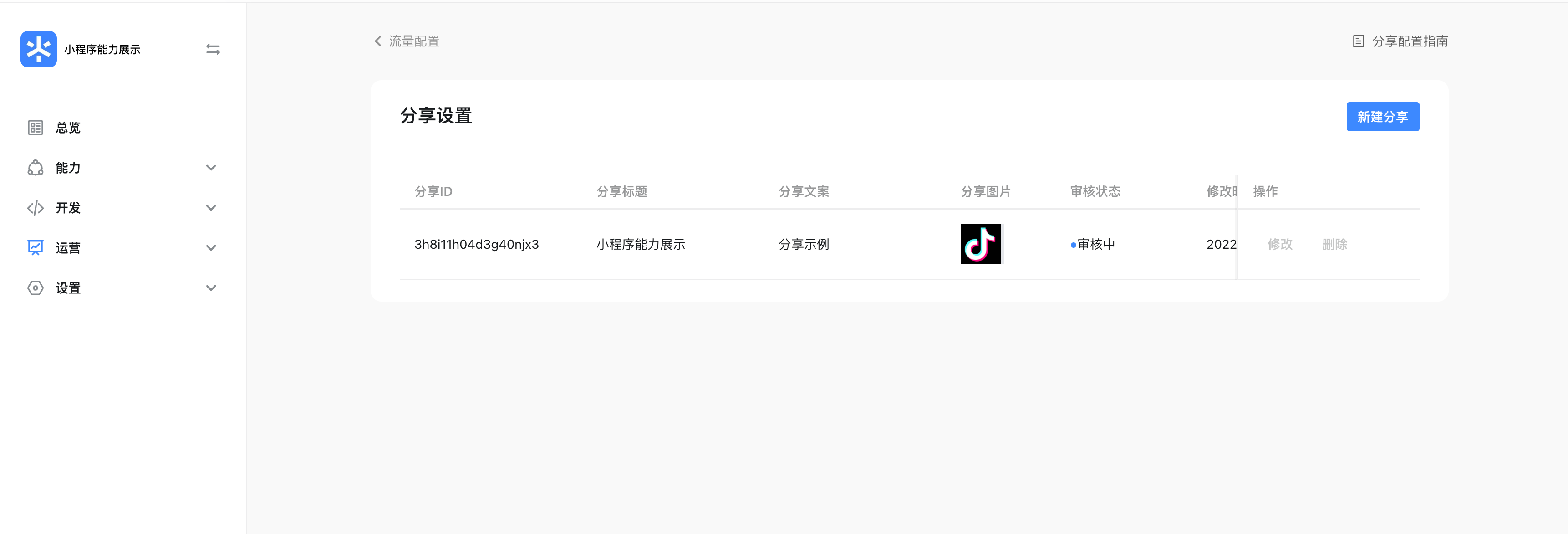

提交审核后，可以看到如下界面。

在审核通过后，就可以在小程序代码内使用上图中的分享 ID了。

接下来，就可以使用对应的分享 ID 来配置分享页面了。

配置分享页面

本页目标

开发者能够对小程序的分享流程和入口有概念，并且能够实现对应的功能。

小程序内的分享流程

如下图所示，页面分享的入口是 button 按钮、页面右上角的「更多面板—分享」和截图分享。

用户点击任意分享入口后，会触发定义在页面的 onShareAppMessage方法，之后获取方法返回的 ShareParam 进行分享面板的拉起。

之后由用户在分享面板中选择各种分享渠道，包括抖音消息、微信、朋友圈、链接分享等。

小程序内的分享入口

根据规范，小程序的分享必须由用户触发，不能由开发者主动调用。

当前小程序内的分享入口有下面三种。

入口	触发方式	效果	特殊说明
button 组件	自定义按钮 `<button open-type="share">点击完成小程序分享button>`
更多面板-分享	点击小程序右上角的「更多面板—分享」按钮，触发小程序的分享。		如果不想在当前更多面板上展示分享按钮，需要手动调用tt.hideShareMenu 控制不展示「分享」按钮，否则默认展示。
截图分享	用户主动截图		当前页面配置了 onShareAppMessage 方法后，截图时会触发截图分享。

分享配置

分享配置具体是指在页面 JS 中 Page 构造器里定义的 onShareAppMessage 函数。

•

函数入参：当用户点击分享按钮、页面右上角的「更多面板—分享」或触发截图分享时，onShareAppMessage 会被触发，接收来自用户点击「分享入口」时传入的参数 ShareOption。

•

函数返回值： onShareAppMessage 函数返回的数据格式可以参照 ShareParam，其中 templateId 就是我们上一节中在开发者后台申请的分享模版ID。

转发链接增加自定义参数

•

在 ShareParam 的 path 参数中可以添加相关 query

•

转发页面打开时，query参数会传入 onload 方法

Page({
  onShareAppMessage(shareOption) {
    return {
      // 分享地址，未填则默认分享当前页面
      // ?后面的参数会在转发页面打开时传入onLoad方法
      path: `/pages/component/button/button?from=${shareOption.from}&isShare=true`,
      templateId: "3h8i11h04d3g40njx3",
      title: "页面传入的分享标题",
      success() {
        console.log("分享面板调起成功，不代表分享成功");
      },
      fail(e) {
        console.log("分享面板调起失败", e);
      },
    };
  },
  onLoad(query) {
    if (query.isShare) {
      console.log(`来自分享入口：${query.from}打开`);
    }
  },
});

Demo 工程

代码片段示例

效果展示

用户点击页面按钮分享到抖音私信

用户点击页面按钮分享到微信/朋友圈

用户选择链接形式分享

服务端获取分享链接

获取票据

tips: 流程开始处，使用的小程序 secret，通过 https://developer.open-douyin.com/microapp/{appid}/develop 生成。这里

{appid} 替换为对应的小程序 id，操作位置如下图所示：

在调用所有小程序 OpenAPI 时，需要通过 getAccesstoken 接口进行票据认证，调用方式如下：

Go

type TokenRequest struct {
        Appid  string
        Secret string
}

type TokenResponseData struct {
        AccessToken string `json:"access_token"`
}

type TokenResponse struct {
        ErrNo   int64  `json:"err_no"`
        ErrTips string `json:"err_tips"`

        Data TokenResponseData `json:"data"`
}

func Get(appid string, secret string) string {
        url := "https://developer.toutiao.com/api/apps/v2/token"
        method := "POST"

        reqMap := make(map[string]string)
        reqMap["secret"] = secret
        reqMap["appid"] = appid
        reqMap["grand_type"] = "client_credential"
        reqMap["grant_type"] = "client_credential"

        reqBody, _ := json.Marshal(reqMap)

        payload := strings.NewReader(string(reqBody))

        client := &http.Client{}
        req, err := http.NewRequest(method, url, payload)

        if err != nil {
                fmt.Println(err)
                return ""
        }
        req.Header.Add("Content-Type", "application/json")

        res, err := client.Do(req)
        if err != nil {
                fmt.Println(err)
                return ""
        }
        defer res.Body.Close()

        body, err := ioutil.ReadAll(res.Body)
        if err != nil {
                fmt.Println(err)
                return ""
        }
        fmt.Println(string(body))

        respBody := TokenResponse{}

        _ = json.Unmarshal(body, &respBody)

        if respBody.ErrNo == 0 {
                return respBody.Data.AccessToken
        } else {
                return ""
        }
}

Java

// java
import com.google.gson.FieldNamingPolicy;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import okhttp3.*;

public class AccessToken {

    public static String Get(String appid, String secret) throws Exception {
        OkHttpClient client = new OkHttpClient().newBuilder()
                .build();
        MediaType mediaType = MediaType.parse("application/json");

        AccessTokenRequest accessTokenRequest = new AccessTokenRequest(appid, secret);
        Gson gson = new GsonBuilder().setFieldNamingPolicy(FieldNamingPolicy.UPPER_CAMEL_CASE).create();
        String accessTokenRequestString = gson.toJson(accessTokenRequest);

        RequestBody body = RequestBody.create(mediaType, accessTokenRequestString);
        Request request = new Request.Builder()
                .url("https://developer.toutiao.com/api/apps/v2/token")
                .method("POST", body)
                .addHeader("Content-Type", "application/json")
                .build();
        Response response = client.newCall(request).execute();
        if (response.code() != 200) {
            return "";
        }

        ResponseBody responseBody = response.body();
        if (responseBody != null) {
            String responseString = responseBody.string();

            AccessTokenResponse accessTokenResponse = gson.fromJson(responseString, AccessTokenResponse.class);
            if (accessTokenResponse.getErrNo() != 0) {
                return "";
            }

            return accessTokenResponse.getData().getToken();
        }
        return "";
    }
}

public class AccessTokenRequest {
    @SerializedName("appid")
    private String appId;

    @SerializedName("secret")
    private String secret;

    @SerializedName("grand_type")
    private String GrandType = "client_credential";

    @SerializedName("grant_type")
    private String GrantType = "client_credential";

    public AccessTokenRequest(String appId, String secret) {
        this.appId = appId;
        this.secret = secret;
    }


    public String getAppId() {
        return appId;
    }

    public void setAppId(String appId) {
        this.appId = appId;
    }

    public String getSecret() {
        return secret;
    }

    public void setSecret(String secret) {
        this.secret = secret;
    }
}

public class AccessTokenResponse {
    @SerializedName("err_no")
    private long errNo;

    @SerializedName("err_tips")
    private String errTips;

    @SerializedName("data")
    private TokenData data;

    public AccessTokenResponse(long errNo, String errTips, TokenData data) {
        this.errNo = errNo;
        this.errTips = errTips;
        this.data = data;
    }

    public long getErrNo() {
        return errNo;
    }

    public void setErrNo(long errNo) {
        this.errNo = errNo;
    }

    public String getErrTips() {
        return errTips;
    }

    public void setErrTips(String errTips) {
        this.errTips = errTips;
    }

    public TokenData getData() {
        return data;
    }

    public void setData(TokenData data) {
        this.data = data;
    }
}

public class TokenData {

    @SerializedName("access_token")
    private String token;

    public TokenData(String token) {
        this.token = token;
    }

    public String getToken() {
        return token;
    }

    public void setToken(String token) {
        this.token = token;
    }
}

JavaScript

const axios = require('axios');

module.exports = function getAccessToken(appId,secret) {
    const config = {
        method: 'post',
        url: 'https://developer.toutiao.com/api/apps/v2/token',
        headers: {
            'Content-Type': 'application/json',
            "Accept-Encoding": "*"
        },
        data: {
            secret,
            grant_type: "client_credential",
            grand_type: "client_credential",
            appid: appId
        }
    };

    return axios(config)
        .then(function (response) {
            if(response.data && response.data.err_no === 0 ){
                return response.data.data.access_token;
            }else{
                throw new Error('accessToken获取失败：'+ response.data && response.data.err_tips);
            }
        })
}

分享二维码

通过链接传参，生成图片二进制数据，开发者自行存储。

Go

type RGB struct {
        RValue uint8 `json:"r"`
        GValue uint8 `json:"g"`
        BValue uint8 `json:"b"`
}

type CreateRequest struct {
        AccessToken     string `json:"access_token"`
        AppName         string `json:"appname"`
        Path            string `json:"path"`
        Width           uint   `json:"width"`
        LineColor       *RGB   `json:"line_color"`
        BackGroundColor *RGB   `json:"background"`
        SetIcon         bool   `json:"set_icon"`
}

func CreateQrcode(token string, appName string, path string, width uint, lineColor *RGB, background *RGB, setIcon bool) []byte {
        url := "https://developer.toutiao.com/api/apps/qrcode"
        method := "POST"

        qrcodeRequest := &CreateRequest{
                AccessToken:     token,
                AppName:         appName,
                Path:            path,
                Width:           width,
                LineColor:       lineColor,
                BackGroundColor: background,
                SetIcon:         setIcon,
        }

        requestBody, _ := json.Marshal(qrcodeRequest)

        payload := strings.NewReader(string(requestBody))

        client := &http.Client{}
        req, err := http.NewRequest(method, url, payload)

        if err != nil {
                fmt.Println(err)
                return nil
        }
        req.Header.Add("Content-Type", "application/json")

        res, err := client.Do(req)
        if err != nil {
                fmt.Println(err)
                return nil
        }
        defer res.Body.Close()

        body, err := ioutil.ReadAll(res.Body)
        if err != nil {
                fmt.Println(err)
                return nil
        }
        fmt.Println(string(body))
        return body
}

Java

// java
import com.google.gson.FieldNamingPolicy;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import okhttp3.*;
import toutiao.accesstoken.AccessTokenResponse;

public class QrCode {

    public static byte[] Create(QrCodeRequest qrCodeRequest) throws Exception {

        Gson gson = new GsonBuilder().setFieldNamingPolicy(FieldNamingPolicy.UPPER_CAMEL_CASE).create();
        OkHttpClient client = new OkHttpClient().newBuilder()
                .build();
        MediaType mediaType = MediaType.parse("application/json");

        RequestBody body = RequestBody.create(
                mediaType,
                gson.toJson(qrCodeRequest));
        Request request = new Request.Builder()
                .url("https://developer.toutiao.com/api/apps/qrcode")
                .method("POST", body)
                .addHeader("Content-Type", "application/json")
                .build();
        Response response = client.newCall(request).execute();

        if (response.code() != 200) {
            return null;
        }
        ResponseBody responseBody = response.body();
        if (responseBody != null) {
            return responseBody.bytes();
        }
        return null;
    }
}

public class QrCodeRequest {
    @SerializedName("access_token")
    private String accessToken;

    @SerializedName("appname")
    private String appName;

    @SerializedName("path")
    private String path;

    @SerializedName("width")
    private int width;

    @SerializedName("line_color")
    private RgbEntity lineColor;

    @SerializedName("background")
    private RgbEntity backGround;

    @SerializedName("set_icon")
    private boolean setIcon;

    public QrCodeRequest(String accessToken, String appName, String path, int width, RgbEntity lineColor, RgbEntity backGround, boolean setIcon) {
        this.accessToken = accessToken;
        this.appName = appName;
        this.path = path;
        this.width = width;
        this.lineColor = lineColor;
        this.backGround = backGround;
        this.setIcon = setIcon;
    }

    public String getAccessToken() {
        return accessToken;
    }

    public void setAccessToken(String accessToken) {
        this.accessToken = accessToken;
    }

    public String getAppName() {
        return appName;
    }

    public void setAppName(String appName) {
        this.appName = appName;
    }

    public String getPath() {
        return path;
    }

    public void setPath(String path) {
        this.path = path;
    }

    public int getWidth() {
        return width;
    }

    public void setWidth(int width) {
        this.width = width;
    }

    public RgbEntity getLineColor() {
        return lineColor;
    }

    public void setLineColor(RgbEntity lineColor) {
        this.lineColor = lineColor;
    }

    public RgbEntity getBackGround() {
        return backGround;
    }

    public void setBackGround(RgbEntity backGround) {
        this.backGround = backGround;
    }

    public boolean isSetIcon() {
        return setIcon;
    }

    public void setSetIcon(boolean setIcon) {
        this.setIcon = setIcon;
    }
}


public class RgbEntity {
    @SerializedName("r")
    private int RValue;
    @SerializedName("g")
    int GValue;
    @SerializedName("b")
    int BValue;


    public int getRValue() {
        return RValue;
    }

    public void setRValue(int RValue) {
        this.RValue = RValue;
    }

    public int getGValue() {
        return GValue;
    }

    public void setGValue(int GValue) {
        this.GValue = GValue;
    }

    public int getBValue() {
        return BValue;
    }

    public void setBValue(int BValue) {
        this.BValue = BValue;
    }
}

JavaScript

const axios = require('axios');

module.exports = function createQrCode(accessToken,{ path, width, lineColor, background }) {
    var config = {
        method: 'post',
        url: 'https://developer.toutiao.com/api/apps/qrcode',
        headers: {
            'Content-Type': 'application/json',
        },
        responseType:"arraybuffer",
        data: {
            appname: "douyin",
            access_token: accessToken,
            path,
            width:width || 1000,
            line_color: lineColor || {
                "r": 0,
                "g": 0,
                "b": 0
            },
            background:background || {
                "r": 255,
                "g": 255,
                "b": 255
            },
            set_icon: false
        }
    };

   return axios(config)
        .then(function (response) {
            if(!response.data || response.data.errmsg){
                throw new Error('二维码生成失败:'+response.data.errmsg);
            }
            return response.data;
        });
}

生成分享链接

根据传递的链接参数，生成小程序跳转分享链接。

Go

type LinkGenerateReq struct {
    AccessToken string `json:"access_token"`
    AppName     string `json:"app_name"`
    AppId       string `json:"ma_app_id"`
    Path        string `json:"path"`
    Query       string `json:"query"`
    ExpireTime  int64  `json:"expire_time"`
}

type LinkGenerateResp struct {
    ErrorCode int64  `json:"err_no"`
    ErrorTips string `json:"err_tips"`
    URLLink   string `json:"url_link"`
}

func Generate(token string, appName string, appid string, path string, query string, expireTime int64) string {
    url := "https://developer.toutiao.com/api/apps/url_link/generate"
    method := "POST"

    reqStruct := &LinkGenerateReq{
        AccessToken: token,
        AppName:     appName,
        AppId:       appid,
        Path:        path,
        Query:       query,
        ExpireTime:  expireTime,
    }

    reqBody, _ := json.Marshal(reqStruct)

    payload := strings.NewReader(string(reqBody))

    client := &http.Client{}
    req, err := http.NewRequest(method, url, payload)

    if err != nil {
        fmt.Println(err)
        return ""
    }
    req.Header.Add("Content-Type", "application/json")

    res, err := client.Do(req)
    if err != nil {
        fmt.Println(err)
        return ""
    }
    defer res.Body.Close()

    body, err := ioutil.ReadAll(res.Body)
    if err != nil {
        fmt.Println(err)
        return ""
    }
    fmt.Println(string(body))

    respStruct := &LinkGenerateResp{}
    _ = json.Unmarshal(body, respStruct)

    if respStruct.ErrorCode == 0 {
        return respStruct.URLLink
    } else {
        return ""
    }
}

Java

// java
import com.google.gson.FieldNamingPolicy;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import okhttp3.*;

public class Generate {

    public static GenerateResponse Generate(GenerateRequest generateRequest) throws Exception {
        OkHttpClient client = new OkHttpClient().newBuilder()
                .build();
        MediaType mediaType = MediaType.parse("application/json");

        Gson gson = new GsonBuilder().setFieldNamingPolicy(FieldNamingPolicy.UPPER_CAMEL_CASE).create();

        RequestBody body = RequestBody.create(
                mediaType,
                gson.toJson(generateRequest));
        Request request = new Request.Builder()
                .url("https://developer.toutiao.com/api/apps/url_link/generate")
                .method("POST", body)
                .addHeader("Content-Type", "application/json")
                .build();
        Response response = client.newCall(request).execute();

        if (response.code() != 200) {
            return null;
        }

        ResponseBody responseBody = response.body();
        if (responseBody == null) {
            return null;
        }

        String result = responseBody.string();

        return gson.fromJson(result, GenerateResponse.class);
    }
}

public class GenerateRequest {

    @SerializedName("access_token")
    private String accessToken;

    @SerializedName("app_name")
    private String appName;

    @SerializedName("ma_app_id")
    private String appId;

    @SerializedName("path")
    private String path;

    @SerializedName("query")
    private String query;

    @SerializedName("expire_time")
    private long expireTime;

    public GenerateRequest(String accessToken, String appName, String appId, String path, String query, long expireTime) {
        this.accessToken = accessToken;
        this.appName = appName;
        this.appId = appId;
        this.path = path;
        this.query = query;
        this.expireTime = expireTime;
    }


    public String getAccessToken() {
        return accessToken;
    }

    public void setAccessToken(String accessToken) {
        this.accessToken = accessToken;
    }

    public String getAppName() {
        return appName;
    }

    public void setAppName(String appName) {
        this.appName = appName;
    }

    public String getAppId() {
        return appId;
    }

    public void setAppId(String appId) {
        this.appId = appId;
    }

    public String getPath() {
        return path;
    }

    public void setPath(String path) {
        this.path = path;
    }

    public String getQuery() {
        return query;
    }

    public void setQuery(String query) {
        this.query = query;
    }

    public long getExpireTime() {
        return expireTime;
    }

    public void setExpireTime(long expireTime) {
        this.expireTime = expireTime;
    }
}

public class GenerateResponse {

    @SerializedName("err_no")
    private long errNo;

    @SerializedName("err_tips")
    private String errTips;

    @SerializedName("url_link")
    private String urlLink;

    public GenerateResponse(long errNo, String errTips, String urlLink) {
        this.errNo = errNo;
        this.errTips = errTips;
        this.urlLink = urlLink;
    }


    public long getErrNo() {
        return errNo;
    }

    public void setErrNo(long errNo) {
        this.errNo = errNo;
    }

    public String getErrTips() {
        return errTips;
    }

    public void setErrTips(String errTips) {
        this.errTips = errTips;
    }

    public String getUrlLink() {
        return urlLink;
    }

    public void setUrlLink(String urlLink) {
        this.urlLink = urlLink;
    }
}

JavaScript

const axios = require('axios');
function generateUrlLink(accessToken, appId, { query, path, expireTime }) {
    var config = {
        method: 'post',
        url: 'https://developer.toutiao.com/api/apps/url_link/generate',
        headers: {
            'Content-Type': 'application/json'
        },
        data : {
            access_token:accessToken,
            ma_app_id:appId,
            app_name:"douyin",
            path,
            query,
            expire_time: expireTime
        }
   };
   return axios(config)
        .then(function (response) {
            if(response.data && response.data.err_no === 0){
                return response.data.url_link;
            }
            throw new Error('生成urlink失败：'+ response.data && response.data.err_tips)
        });

}

查询链接基本信息

根据小程序分享链接，查询相关链接的基本信息。

Go

type LinkInfo struct {
        AppName    string `json:"app_name"`
        AppId      string `json:"ma_app_id"`
        Path       string `json:"path"`
        Query      string `json:"query"`
        CreateTime int64  `json:"create_time"`
        ExpireTime int64  `json:"expire_time"`
}

type LinkQueryInfoReq struct {
        AccessToken string `json:"access_token" mask:"session"`
        MaAppId     string `json:"ma_app_id"`
        URLLink     string `json:"url_link"`
}

type LinkQueryInfoResp struct {
        ErrorCode   int64    `json:"err_no"`
        ErrorTips   string   `json:"err_tips"`
        URLLinkInfo LinkInfo `json:"url_link_info"`
}

func QueryInfo(token string, urlLink string, appid string) {
        url := "https://developer.toutiao.com/api/apps/url_link/query_info"
        method := "POST"

        reqStruct := &LinkQueryInfoReq{
                AccessToken: token,
                MaAppId:     appid,
                URLLink:     urlLink,
        }
        reqBody, _ := json.Marshal(reqStruct)

        payload := strings.NewReader(string(reqBody))

        client := &http.Client{}
        req, err := http.NewRequest(method, url, payload)

        if err != nil {
                fmt.Println(err)
                return
        }
        req.Header.Add("Content-Type", "application/json")

        res, err := client.Do(req)
        if err != nil {
                fmt.Println(err)
                return
        }
        defer res.Body.Close()

        body, err := ioutil.ReadAll(res.Body)
        if err != nil {
                fmt.Println(err)
                return
        }
        fmt.Println(string(body))
}

Java

// java
import com.google.gson.FieldNamingPolicy;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import okhttp3.*;
import toutiao.accesstoken.AccessTokenResponse;

public class QueryInfo {

    public static QueryInfoResponse QueryInfo(QueryInfoRequest queryInfoRequest) throws Exception {
        OkHttpClient client = new OkHttpClient().newBuilder()
                .build();
        MediaType mediaType = MediaType.parse("application/json");

        Gson gson = new GsonBuilder().setFieldNamingPolicy(FieldNamingPolicy.UPPER_CAMEL_CASE).create();

        String queryInfoRequestString = gson.toJson(queryInfoRequest);

        RequestBody body = RequestBody.create(mediaType, queryInfoRequestString);
        Request request = new Request.Builder()
                .url("https://developer.toutiao.com/api/apps/url_link/query_info")
                .method("POST", body)
                .addHeader("Content-Type", "application/json")
                .build();
        Response response = client.newCall(request).execute();

        if (response.code() != 200) {
            return null;
        }

        ResponseBody responseBody = response.body();
        if (responseBody == null) {
            return null;
        }

        String result = responseBody.string();

        return gson.fromJson(result, QueryInfoResponse.class);
    }
}

public class QueryInfoRequest {

    @SerializedName("access_token")
    private String accessToken;

    @SerializedName("ma_app_id")
    private String appId;

    @SerializedName("url_link")
    private String urlLink;

    public QueryInfoRequest(String accessToken, String appId, String urlLink) {
        this.accessToken = accessToken;
        this.appId = appId;
        this.urlLink = urlLink;
    }

    public String getAccessToken() {
        return accessToken;
    }

    public void setAccessToken(String accessToken) {
        this.accessToken = accessToken;
    }

    public String getAppId() {
        return appId;
    }

    public void setAppId(String appId) {
        this.appId = appId;
    }

    public String getUrlLink() {
        return urlLink;
    }

    public void setUrlLink(String urlLink) {
        this.urlLink = urlLink;
    }
}

public class QueryInfoResponse {

    @SerializedName("err_no")
    private long errNo;

    @SerializedName("err_tips")
    private String errTips;

    @SerializedName("url_link_info")
    private UrlLinkInfo linkInfo;

    public QueryInfoResponse(long errNo, String errTips, UrlLinkInfo linkInfo) {
        this.errNo = errNo;
        this.errTips = errTips;
        this.linkInfo = linkInfo;
    }

    public long getErrNo() {
        return errNo;
    }

    public void setErrNo(long errNo) {
        this.errNo = errNo;
    }

    public String getErrTips() {
        return errTips;
    }

    public void setErrTips(String errTips) {
        this.errTips = errTips;
    }

    public UrlLinkInfo getLinkInfo() {
        return linkInfo;
    }

    public void setLinkInfo(UrlLinkInfo linkInfo) {
        this.linkInfo = linkInfo;
    }
}

public class UrlLinkInfo {

    @SerializedName("app_name")
    private String appName;

    @SerializedName("ma_app_id")
    private String appId;

    @SerializedName("path")
    private String path;

    @SerializedName("query")
    private String query;

    @SerializedName("create_time")
    private long createTime;

    @SerializedName("expire_time")
    private long expireTime;

    public UrlLinkInfo(String appName, String appId, String path, String query, long createTime, long expireTime) {
        this.appName = appName;
        this.appId = appId;
        this.path = path;
        this.query = query;
        this.createTime = createTime;
        this.expireTime = expireTime;
    }

    public String getAppName() {
        return appName;
    }

    public void setAppName(String appName) {
        this.appName = appName;
    }

    public String getAppId() {
        return appId;
    }

    public void setAppId(String appId) {
        this.appId = appId;
    }

    public String getPath() {
        return path;
    }

    public void setPath(String path) {
        this.path = path;
    }

    public String getQuery() {
        return query;
    }

    public void setQuery(String query) {
        this.query = query;
    }

    public long getCreateTime() {
        return createTime;
    }

    public void setCreateTime(long createTime) {
        this.createTime = createTime;
    }

    public long getExpireTime() {
        return expireTime;
    }

    public void setExpireTime(long expireTime) {
        this.expireTime = expireTime;
    }
}

JavaScript

const axios = require('axios');
module.exports = function getQueryInfo(accessToken, appId, urlLink) {
    var config = {
        method: 'post',
        url: 'https://developer.toutiao.com/api/apps/url_link/query_info',
        headers: {
            'Content-Type': 'application/json',
            "Accept-Encoding": "*"
        },
        data : {
            access_token: accessToken,
            url_link: urlLink,
            ma_app_id: appId
        }
    };

    return axios(config)
        .then(function (response) {
            if(response.data && response.data.err_no === 0){
                return response.data.url_link_info;
            }
            throw new Error('查询urlink信息失败：'+ response.data && response.data.err_tips)
        });
}

查询生成链接额度

查询单天生成小程序链接所剩额度。

Go

type QuotaInfo struct {
        URLLinkUsed  int `json:"url_link_used"`
        URLLinkLimit int `json:"url_link_limit"`
}

type LinkQueryQuotaReq struct {
        AccessToken string `json:"access_token" mask:"session"`
        MaAppId     string `json:"ma_app_id"`
}

type LinkQueryQuotaResp struct {
        ErrorCode    int64     `json:"err_no"`
        ErrorTips    string    `json:"err_tips"`
        URLLinkQuota QuotaInfo `json:"url_link_quota"`
}

func QueryQuota(token string, appid string) {
        url := "https://developer.toutiao.com/api/apps/url_link/query_quota"
        method := "POST"

        reqStruct := &LinkQueryQuotaReq{
                AccessToken: token,
                MaAppId:     appid,
        }
        reqBody, _ := json.Marshal(reqStruct)

        payload := strings.NewReader(string(reqBody))

        client := &http.Client{}
        req, err := http.NewRequest(method, url, payload)

        if err != nil {
                fmt.Println(err)
                return
        }
        req.Header.Add("Content-Type", "application/json")

        res, err := client.Do(req)
        if err != nil {
                fmt.Println(err)
                return
        }
        defer res.Body.Close()

        body, err := ioutil.ReadAll(res.Body)
        if err != nil {
                fmt.Println(err)
                return
        }
        fmt.Println(string(body))
}

Java

// java
import com.google.gson.FieldNamingPolicy;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import okhttp3.*;

public class QueryQuota {

    public static QueryQuotaResponse QueryQuota(QueryQuotaRequest queryQuotaRequest) throws Exception {
        OkHttpClient client = new OkHttpClient().newBuilder()
                .build();
        MediaType mediaType = MediaType.parse("application/json");

        Gson gson = new GsonBuilder().setFieldNamingPolicy(FieldNamingPolicy.UPPER_CAMEL_CASE).create();

        String queryQuotaRequestString = gson.toJson(queryQuotaRequest);

        RequestBody body = RequestBody.create(mediaType, queryQuotaRequestString);
        Request request = new Request.Builder()
                .url("https://developer.toutiao.com/api/apps/url_link/query_quota")
                .method("POST", body)
                .addHeader("Content-Type", "application/json")
                .build();
        Response response = client.newCall(request).execute();

        if (response.code() != 200) {
            return null;
        }

        ResponseBody responseBody = response.body();
        if (responseBody == null) {
            return null;
        }

        String result = responseBody.string();
        return gson.fromJson(result, QueryQuotaResponse.class);
    }
}

public class QueryQuotaRequest {

    @SerializedName("access_token")
    private String accessToken;

    @SerializedName("ma_app_id")
    private String appId;

    public QueryQuotaRequest(String accessToken, String appId) {
        this.accessToken = accessToken;
        this.appId = appId;
    }


    public String getAccessToken() {
        return accessToken;
    }

    public void setAccessToken(String accessToken) {
        this.accessToken = accessToken;
    }

    public String getAppId() {
        return appId;
    }

    public void setAppId(String appId) {
        this.appId = appId;
    }
}

public class QueryQuotaResponse {

    @SerializedName("err_no")
    private long errNo;

    @SerializedName("err_tips")
    private String errTips;

    @SerializedName("url_link_quota")
    private QuotaInfo quotaInfo;

    public QueryQuotaResponse(long errNo, String errTips, QuotaInfo quotaInfo) {
        this.errNo = errNo;
        this.errTips = errTips;
        this.quotaInfo = quotaInfo;
    }

    public long getErrNo() {
        return errNo;
    }

    public void setErrNo(long errNo) {
        this.errNo = errNo;
    }

    public String getErrTips() {
        return errTips;
    }

    public void setErrTips(String errTips) {
        this.errTips = errTips;
    }

    public QuotaInfo getQuotaInfo() {
        return quotaInfo;
    }

    public void setQuotaInfo(QuotaInfo quotaInfo) {
        this.quotaInfo = quotaInfo;
    }
}

public class QuotaInfo {

    @SerializedName("url_link_used")
    private int urlLinkUsed;

    @SerializedName("url_link_limit")
    private int urlLinkLimit;

    public QuotaInfo(int urlLinkUsed, int urlLinkLimit) {
        this.urlLinkUsed = urlLinkUsed;
        this.urlLinkLimit = urlLinkLimit;
    }

    public int getUrlLinkUsed() {
        return urlLinkUsed;
    }

    public void setUrlLinkUsed(int urlLinkUsed) {
        this.urlLinkUsed = urlLinkUsed;
    }

    public int getUrlLinkLimit() {
        return urlLinkLimit;
    }

    public void setUrlLinkLimit(int urlLinkLimit) {
        this.urlLinkLimit = urlLinkLimit;
    }
}

JavaScript

const axios = require("axios");
module.exports=function queryQuota(accessToken,appId,) {
    var config = {
        method: 'post',
        url: 'https://developer.toutiao.com/api/apps/url_link/query_quota',
        headers: {
            'Content-Type': 'application/json'
        },
        data : {
            access_token: accessToken,
            ma_app_id: appId
        }
    };

    return axios(config)
        .then(function (response) {
            if(response.data && response.data.err_no === 0){
                return response.data.url_link_quota;
            }
            throw new Error('查询urlink限额失败：' + response.data && response.data.err_tips)
        })
}

整体流程参考

Go

// go
var appid = ""
var secret = ""

func main() {
    token := accesstoken.Get(appid, secret)

    if token != "" {
        // 根据业务需求填入相关参数
        // 生成二维码
        qrcode.CreateQrcode(token, "", "", 0, nil, nil, false)

        // 生成分享链接
        url := urllink.Generate(token, "", appid, "", "{}", 0)

        // 查询链接相关基本信息
        urllink.QueryInfo(token, url, "")

        // 查询请求链接剩余额度
        urllink.QueryQuota(token, appid)
    }
}

Java

// java
public class main {
    static String AppId = "";
    static String Secret = "";
    public static void main(String[] args) throws Exception {
        String token = AccessToken.Get(AppId, Secret);

        // 用户自行自定义参数
        // 生成分享二维码图片
        QrCodeRequest qrCodeRequest = new QrCodeRequest(token,
                "",
                "",
                0,
                null,
                null,
        false);
        byte[] imgByte = QrCode.Create(qrCodeRequest);

        // 生成分享链接
        GenerateRequest generateRequest = new GenerateRequest(token, "",
                AppId, "", "{}", 0);
        GenerateResponse generateResponse = Generate.Generate(generateRequest);

        // 查询链接基本信息
        assert generateResponse != null;
        QueryInfoRequest queryInfoRequest = new QueryInfoRequest(token, AppId, generateResponse.getUrlLink());
        QueryInfoResponse queryInfoResponse = QueryInfo.QueryInfo(queryInfoRequest);

        // 查询生成链接额度
        QueryQuotaRequest queryQuotaRequest = new QueryQuotaRequest(token, AppId);
        QueryQuotaResponse queryQuotaResponse = QueryQuota.QueryQuota(queryQuotaRequest);
    }
}

JavaScript

const fs = require('fs');
const path =require('path');
const getAccessToken = require('./access-token');
const createQrCode = require('./create-qrcode');
const createUrlLink = require('./create-url-link');
const queryLinkInfo = require('./query-link-info');
const queryLinkQuota = require('./query-link-quota');

const appId = ''; // 填写小程序id
const secret = ''; // 填写对应小程序后台密钥

async function getShareData() {
    try {
        const accessToken = await getAccessToken(appId, secret);

        const qrImgData = await createQrCode(accessToken, {
            path: "pages/index",
            line_color: {
                "r": 0,
                "g": 0,
                "b": 0
            },
            background: {
                "r": 255,
                "g": 255,
                "b": 255
            }
        });
        fs.writeFileSync(path.join(__dirname,'qrcode-demo.png'), qrImgData);

        const urlLink = await createUrlLink(accessToken, appId, {
            query: '{}',
            path: 'pages/index',
            expireTime: Math.floor(Date.now() / 1000) + 60 * 24 * 180
        });
        console.log("urlLink:", urlLink);

        const urlLinkInfo = await queryLinkInfo(accessToken, appId, urlLink);
        console.log("urlLinkInfo:", urlLinkInfo);

        const urlLinkQuota = await queryLinkQuota(accessToken, appId);
        console.log("urlLinkQuota:", urlLinkQuota);

    } catch (error) {
        console.log(error);
    }
}

基本文档-含调用示例

分享二维码

根据传入参数，生成分享使用的二维码图片：createQRCode

生成分享链接

根据开发者传入参数，生成可访问的小程序分享链接：Generate

查询分享链接信息

根据链接查询相关生成信息：QueryInfo

查询分享链接额度

根据链接查询当前小程序配额：QueryQuota

总结

恭喜，你已经完成了小程序分享 Codelab。

你在该 Codelab 中了解了：

•

如何创建分享模板

•

如何配置分享页面

•

如果获取分享链接

接下来，你可以将小程序：

•

通过抖音私信分享

•

通过微信好友或朋友圈分享

•

通过链接分享

小程序分享

简介

能力介绍

如何设置分享素材

目标

调用方式

前提条件

学习内容

创建分享模板

配置分享页面

本页目标

小程序内的分享流程

小程序内的分享入口

分享配置

转发链接增加自定义参数

Demo 工程

效果展示

用户点击页面按钮分享到抖音私信

用户点击页面按钮分享到微信/朋友圈

用户选择链接形式分享

服务端获取分享链接

获取票据

Go

Java

JavaScript

分享二维码

Go

Java

JavaScript

生成分享链接

Go

Java

JavaScript

查询链接基本信息

Go

Java

JavaScript

查询生成链接额度

Go

Java

JavaScript

整体流程参考

Go

Java

JavaScript

基本文档-含调用示例

分享二维码

生成分享链接

查询分享链接信息

查询分享链接额度

总结

更多 Codelab
